33kv Compact Unit Substation

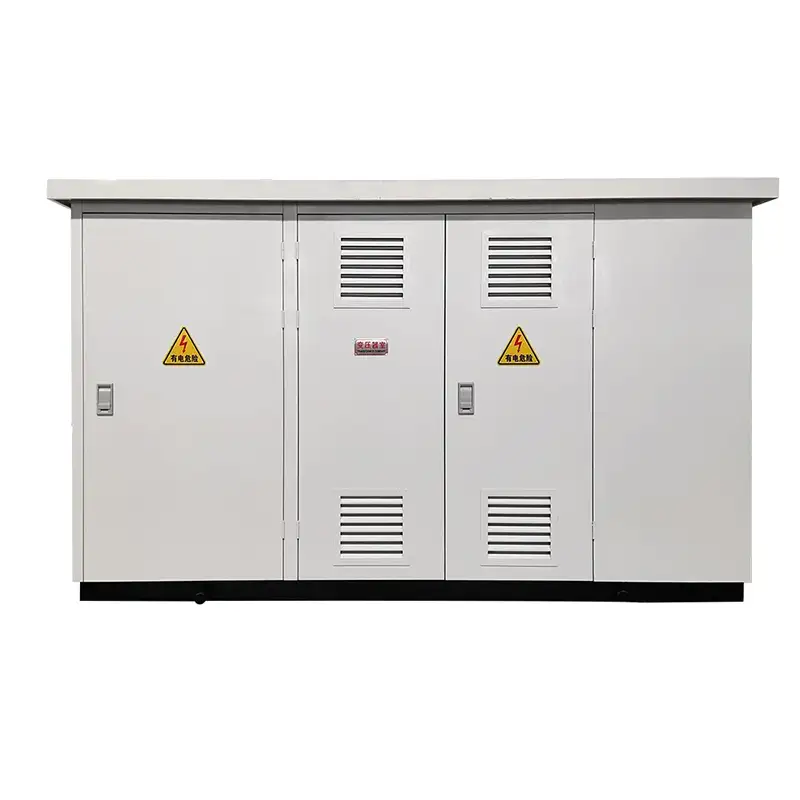

33kv Compact unit Substation is a complete set of power distribution equipment with a rated voltage of 6-35kV and an AC frequency of 50Hz. The transformer capacity ranges from 50 to 1600kVA. The box-type compact substation is suitable for substations in buildings, residential areas, hotels, hospitals, parks and various temporary facilities. The specification stipulates that the capacity of the compact substation cannot be too large, and the transformer capacity cannot exceed 1600kva.

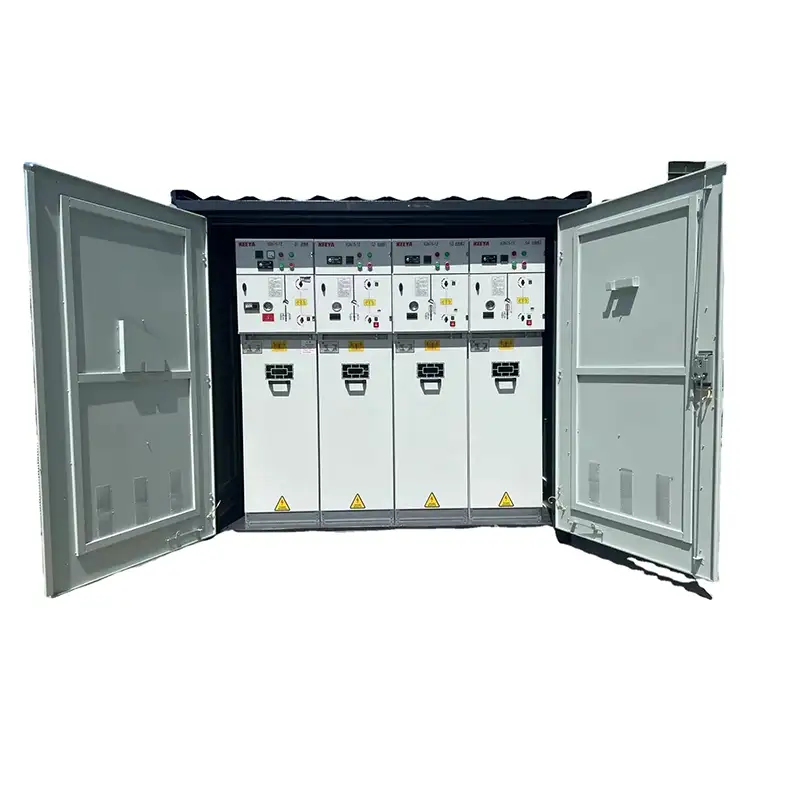

The box-type substation consists of three main components that are tightly encapsulated in one or more boxes: high-voltage distribution unit, transformer and low-voltage distribution unit. Load switches, vacuum circuit breakers or oil-less circuit breakers can be selected on the high-voltage side, and the transformer can be an oil-immersed transformer or an epoxy resin cast dry-type transformer. The box-type substation can be used for both ring network distribution systems and radial distribution terminal power supply systems.

Features of 33kv Compact unit Substation

High integration, small size, small footprint, beautiful design, easy installation, reliable operation, and low maintenance requirements.

The substation shell design refers to foreign advanced technology and combines it with reality. We provide a variety of shell materials, such as aluminum alloy, steel composite stainless steel plate and non-metallic materials (fiberglass).

Charging switch or vacuum circuit breaker is used on the high-voltage side. The transformer can be an oil-immersed fully enclosed transformer or a dry-type transformer.

The box adopts a double-layer structure with foam filled between the layers. The high and low voltage chambers use independent boxes, and automatic thermal control, heaters and cooling equipment are installed in the transformer room.

33kv Compact unit Substation is designed in a variety of types, with a small size, and is widely used in high-rise buildings, airports, railways and other places.

Note: We can provide special customized products according to customer requirements.

Advantages of 33kv Compact unit Substation:

1. Advanced technology and high safety.

2. High degree of automation.

3. Factory prefabrication.

4. Flexible combination.

5. High investment efficiency.

6. Small footprint.

7. Beautiful appearance
