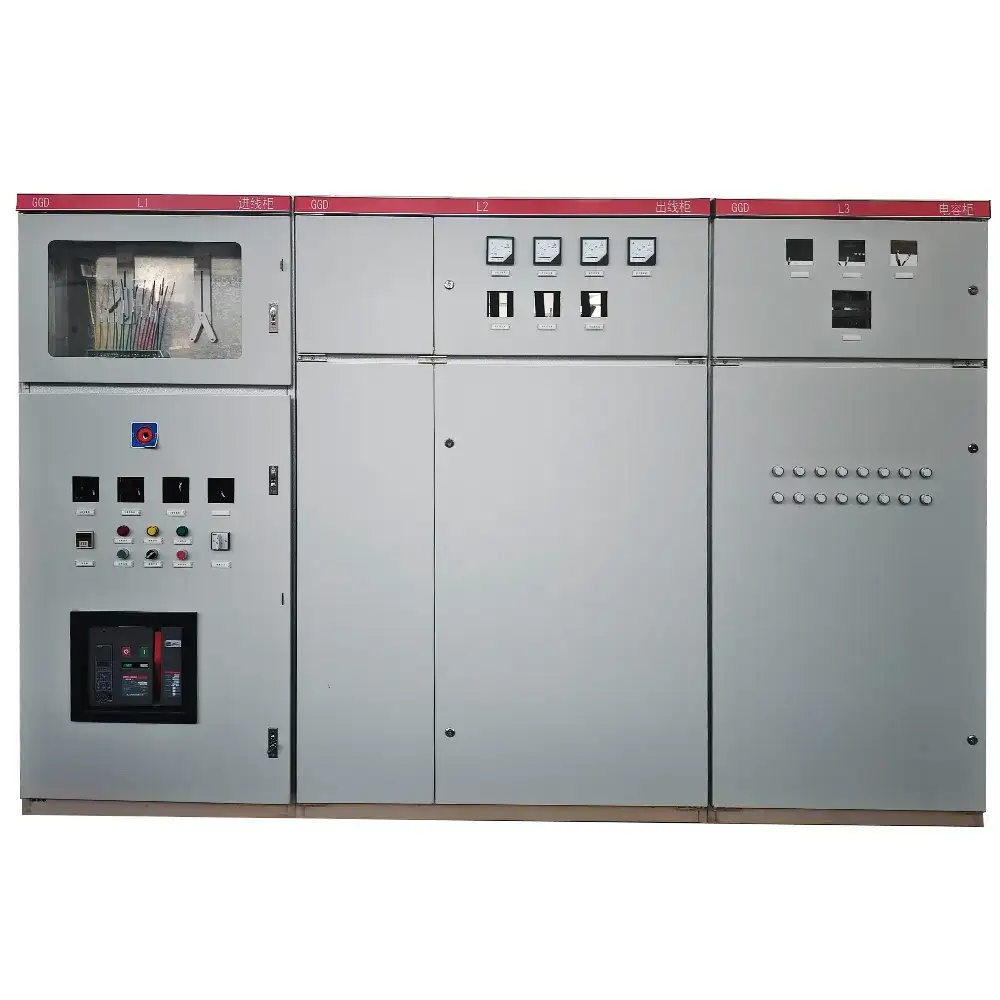

GCS Low Voltage Switchgear

SYHF high quality GCS low voltage switchgear is suitable for power distribution systems of power plants, high-rise buildings, petrochemical, metallurgical, textile and other lines. It is suitable for power distribution, centralized motor control and reactive power compensation in power generation and power supply systems with three-phase AC 50/60Hz, rated voltage 380V (400V, 600V), rated current 4000A and below, high automation requirements and computer interface.

GCS low voltage switchgear features

It is suitable for power distribution, centralized motor control and reactive power compensation in power generation and power supply systems with three-phase AC 50/60Hz, rated voltage 380V and others, rated current 4000A and below, high automation requirements and computer interface.

GCS low voltage switchgear is a multifunctional low-voltage power distribution device, commonly used for power distribution, centralized motor control and reactive power compensation in power generation and power supply systems.

The GCS low voltage switchgear has high breaking and closing capabilities, good dynamic thermal stability and flexibility.

The main structure of GCS is similar to that of MNS, with the main busbar located at the rear. Unlike MNS, GCS uses a 20mm drawer module (MNS is 25mm), and the drawer is equipped with a push mechanism, which is more convenient and flexible to operate.

Introduction to GCS

G-- Closed cabinet;

C-- Pull-out type;

S-- Senyuan electrical system;

Conditions of use

1. Ambient temperature: -5℃～+40℃, daily average +35℃. If it exceeds the regulations, please reduce the capacity according to the actual situation;

2. It can be used indoors, or at an altitude of no more than 2000m;

3. The relative temperature change of the environment may occasionally cause slight moisture;

4. The installation position of the device is not inclined by more than 5% from the vertical plane;

5. It needs to be used in places without flammable and explosive substances, corrosive chemicals, and frequent severe vibrations.

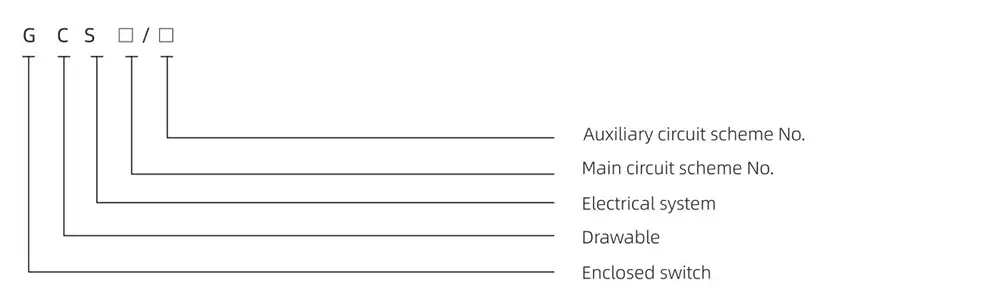

MODEL
