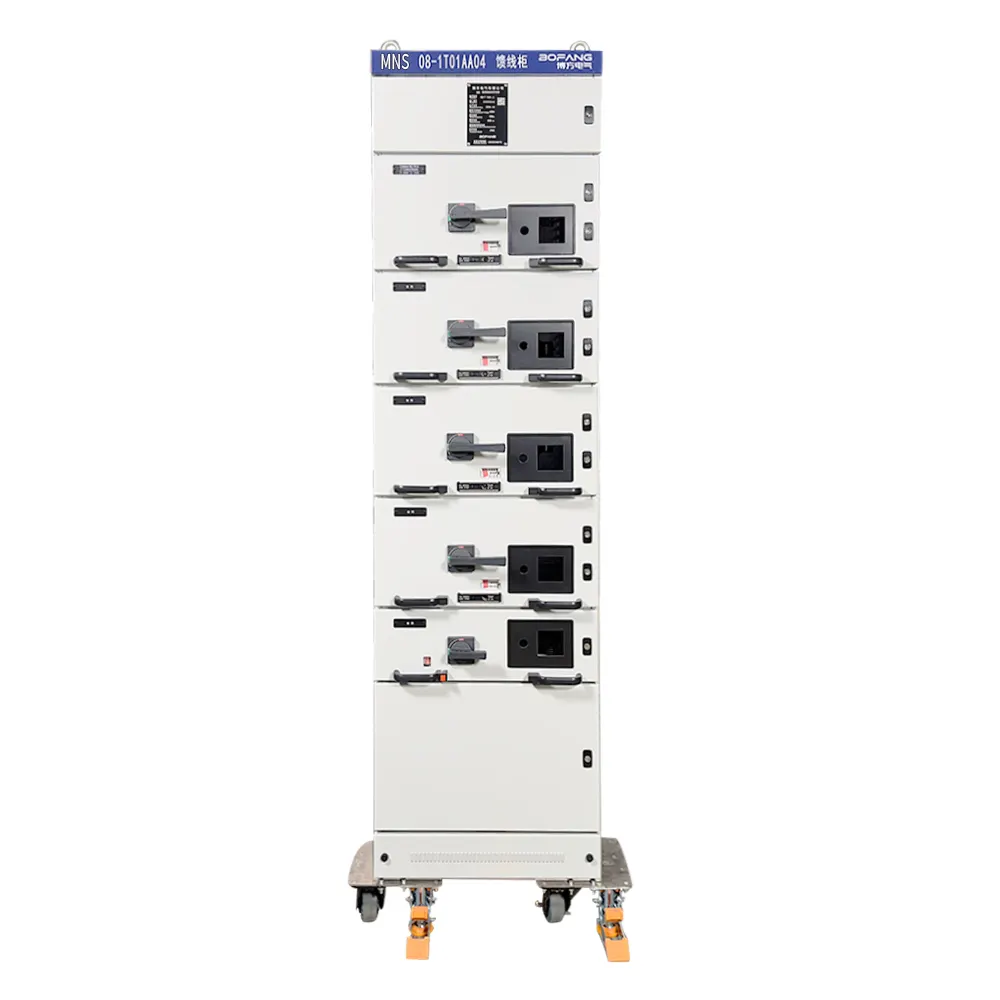

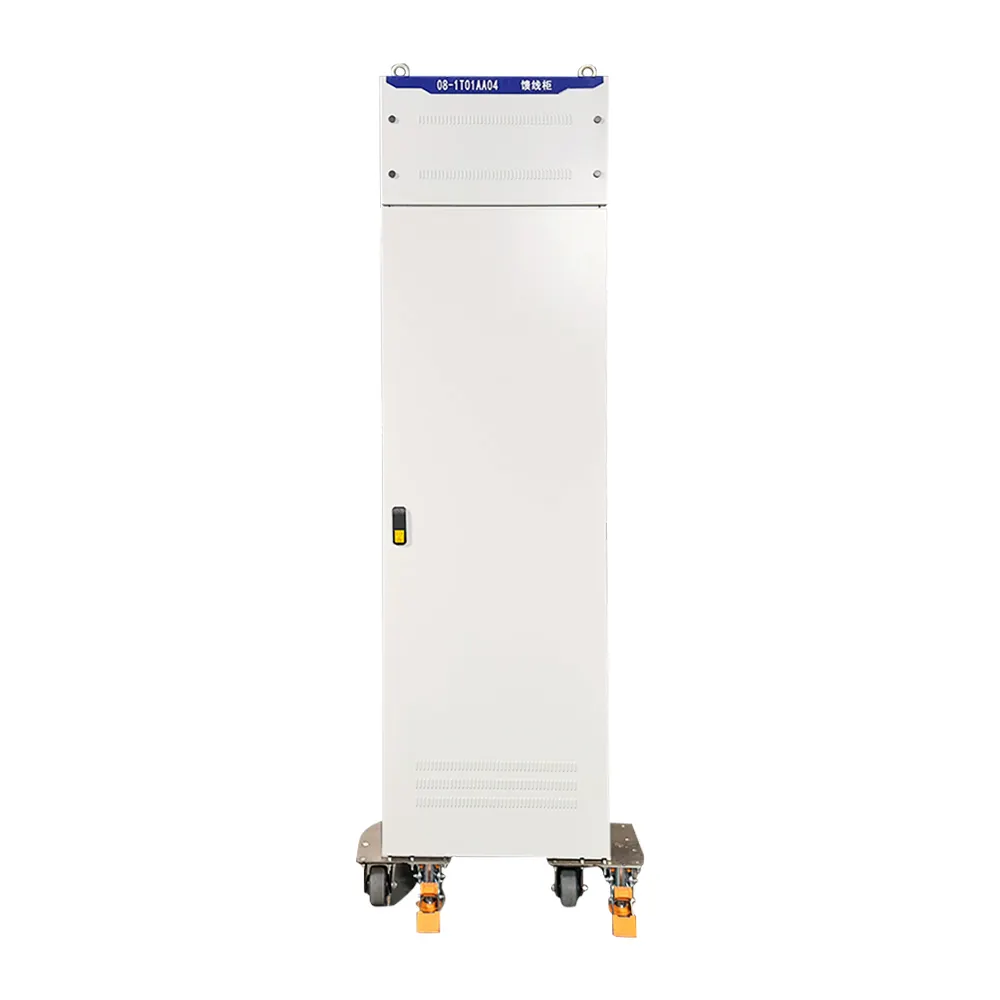

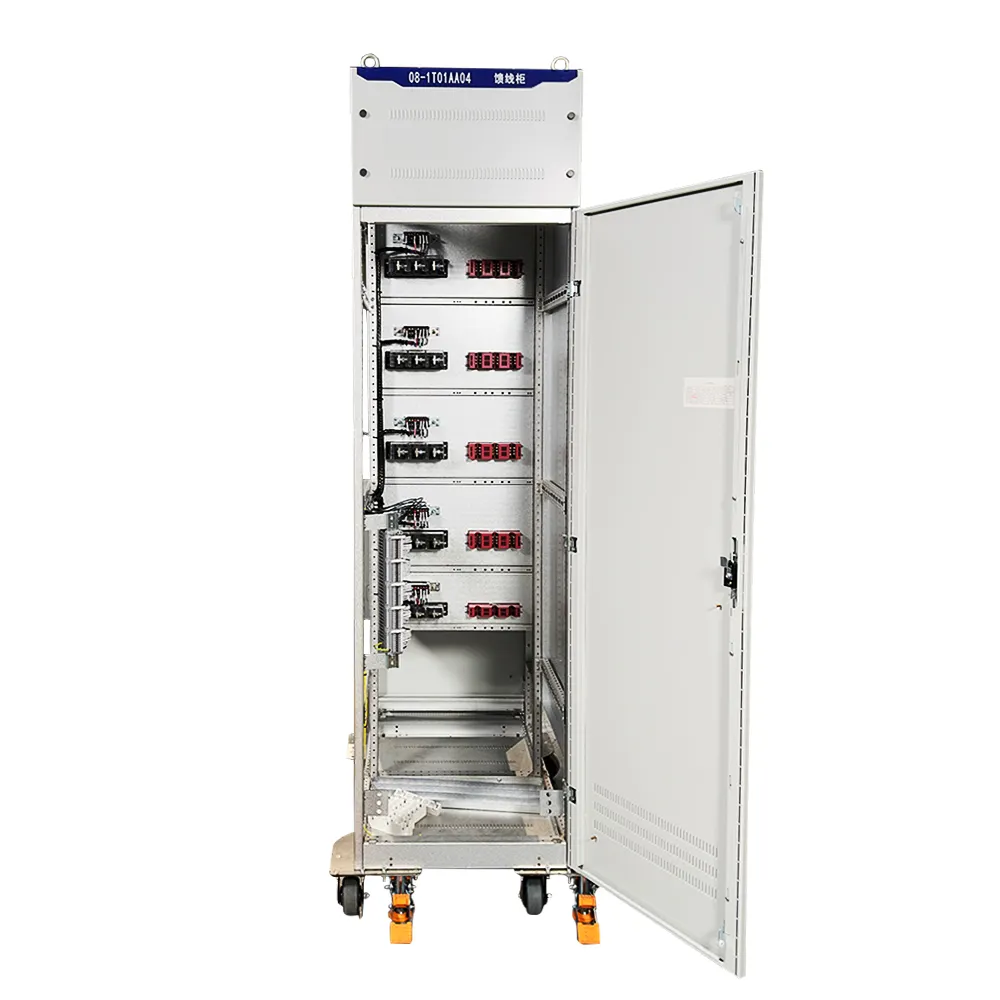

MNS Low Voltage Switchgear

SYHF MNS low voltage switchgear is suitable for power systems with AC 50Hz and rated working voltage of 400V. It is mainly used for energy conversion, distribution and control of power distribution equipment. It is mainly suitable for airports, power stations, transportation energy, industrial and mining enterprises, residential areas and other places. MNS low voltage switchgear includes comprehensive communication, monitoring and control technologies, which can be integrated with all other solutions.

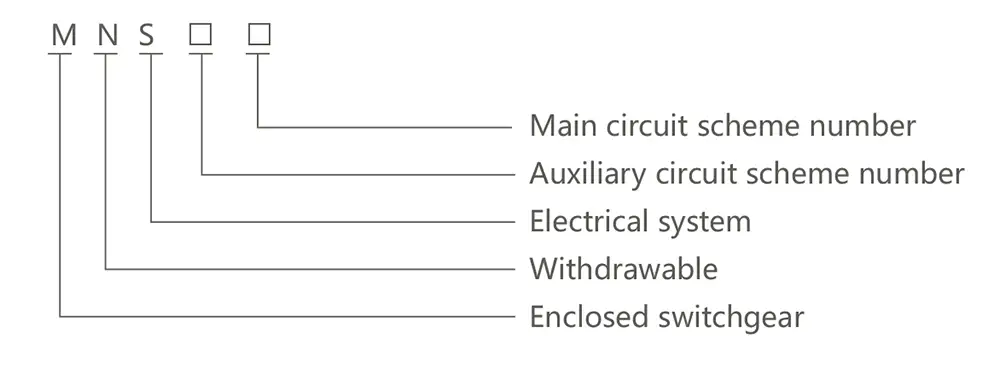

Selection

MNS low voltage switchgear features

1. The drawer operating handle and the control handle are combined into one, which simplifies the operation while retaining the mechanical interlocking function. It overcomes the disadvantages of traditional MNS cabinets, which are complicated to operate and easy to damage due to misoperation.

2. The MCC unit combination has a compact structure and various forms. The cabinet can share a back-to-back busbar arrangement, and a single cabinet can accommodate up to 36 circuits.

3. The cabinet can be arranged back-to-back or against the wall to save installation space.

4. The whole series uses standard components to facilitate engineering design.

5. The product has passed tests such as earthquake resistance, salt spray, and EMC electromagnetic compatibility, and its operation is safe and reliable.

6. A single cabinet can accommodate more units, which can be freely combined into different types such as fixed partition type and drawer type. Drawer units of the same specifications can be easily interchanged.
