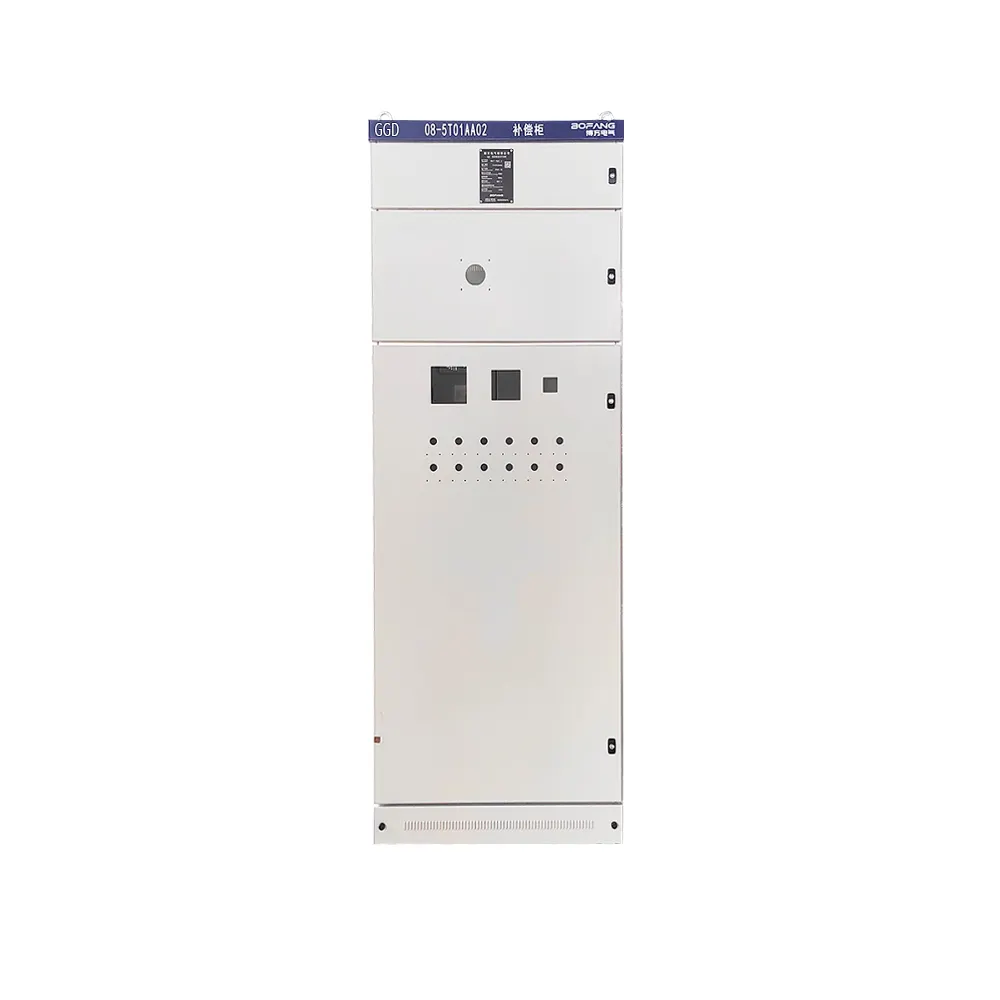

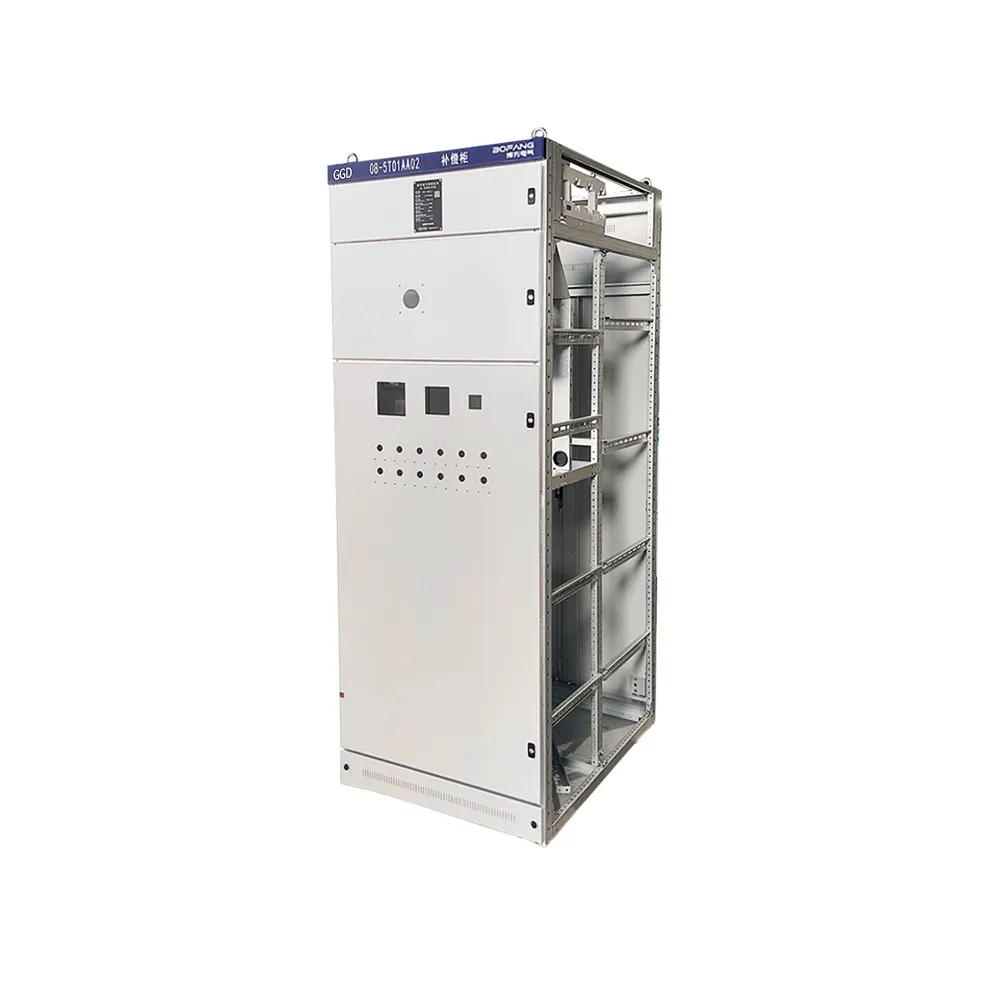

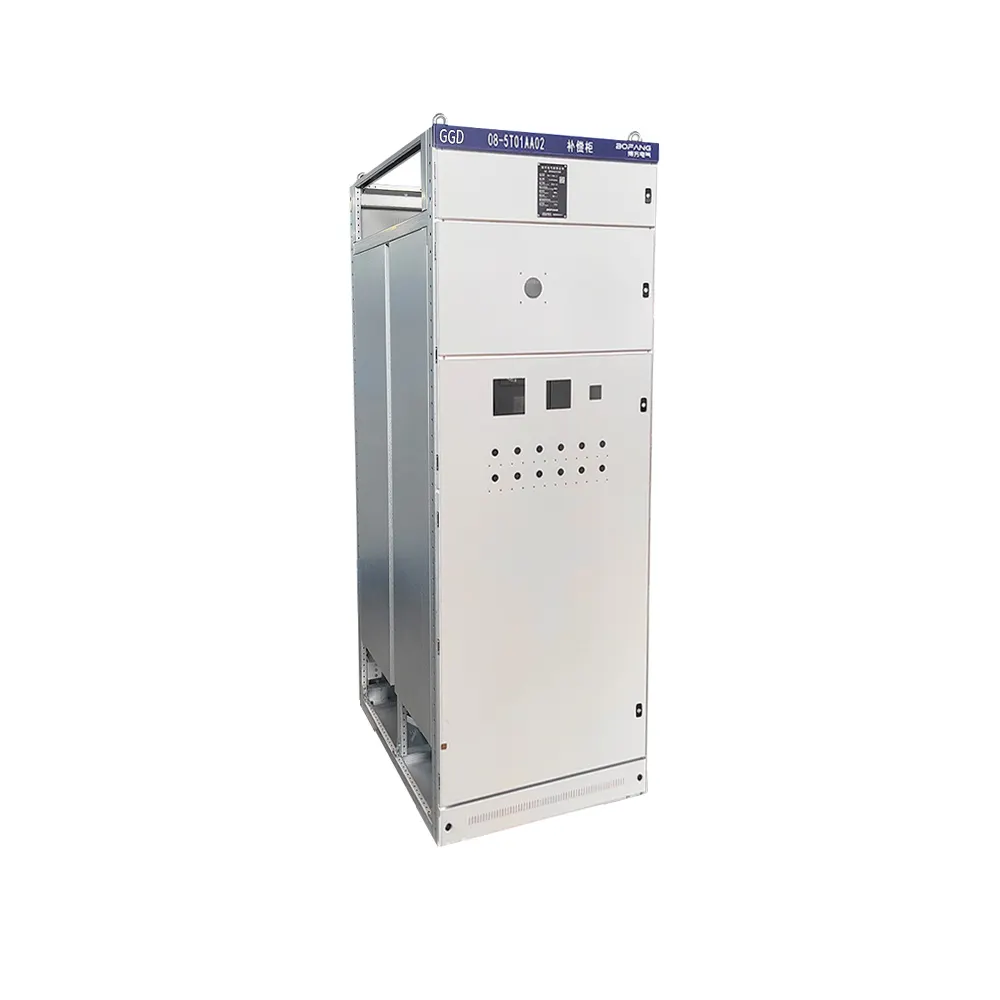

GGD Low Voltage Switchgear

As a professional manufacturer in the power distribution industry, SYHF focuses on researching and producing high-quality products, including GGD low voltage switchgear indoor vacuum circuit breakers, oil immersed and dry-type transformers SF6 GIS、RMU、 Fuses and low-voltage switchgear such as GCK, GCS, MNS, etc. The Saifa GGD low voltage switchgear adopts advanced design concepts and cabinet structures.

GGD low voltage switchgear Detail：

low voltage switchgear

GGD low-voltage distribution cabinet

Rated voltage: 380V.

50-60Hz

GGD low voltage switchgear application:

GGD low voltage switchgear is mainly suitable for power plants, substations, and industrial and mining enterprises as energy converters, distributors, and controllers for power, lighting, and distribution equipment.

Standard: IEC60439-1

GGD low voltage switchgear features

The accuracy and quality of GGD low voltage switchgear can be guaranteed through the framework parts and special parts provided by CNC. modularization

The design of the overall and installation dimensions (in mm) (E=20mm) has shortened production time and improved efficiency.

The heat distribution channels at the top and bottom of the GGD low voltage switchgear form a ventilation circuit to distribute heat.

3. Easy to install and disassemble.

4. The switchgear has a complete grounding protection system.

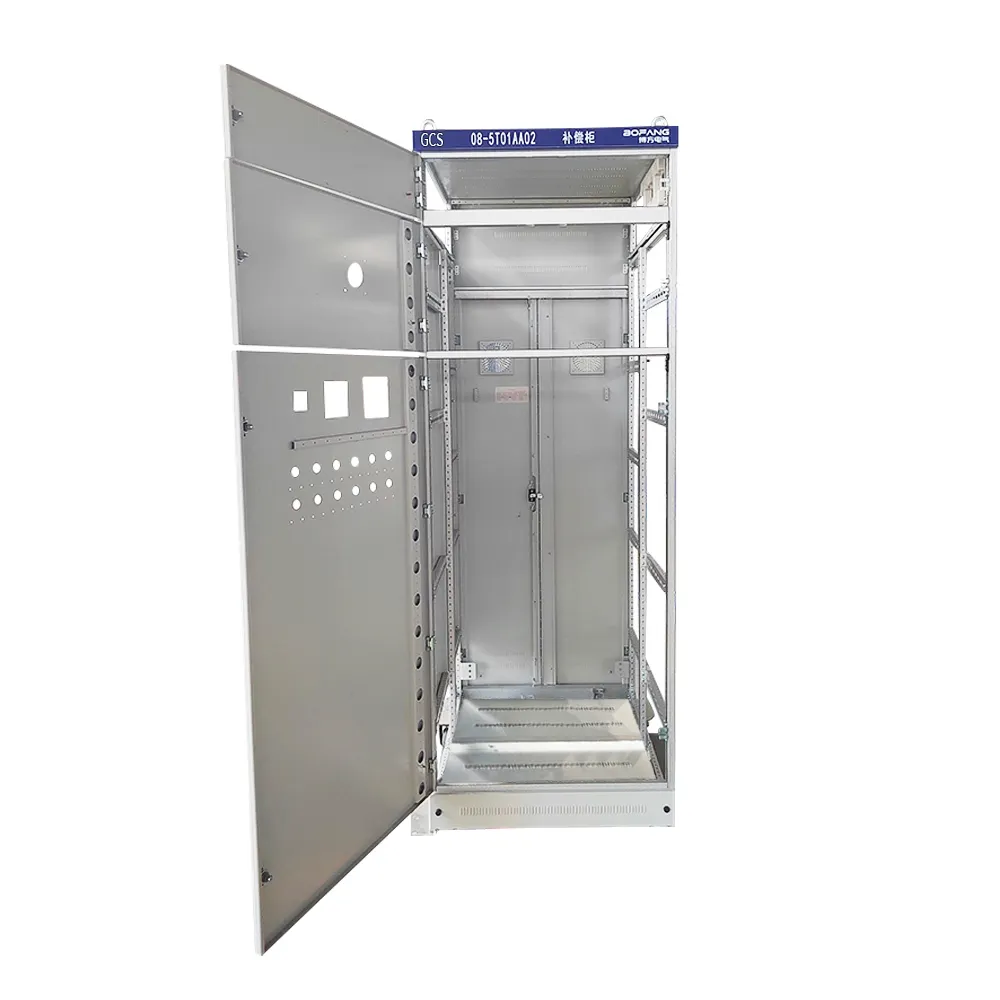

5. The cover of the switchgear can be removed for the installation and adjustment of the main busbar. There are also rings used to enhance and deliver switchgear equipment

6. The protection level is IP30. According to your requirements, we can provide switchgear with protection levels of IP20~IP40.

When placing an order, please provide the following information:

Product full model (including main circuit scheme and auxiliary circuit scheme).

Main circuit system combination sequence diagram and layout plan.

Electrical schematic diagram of auxiliary circuit.

List of components inside the cabinet.

If the user has any special requirements, they should discuss with the manufacturer.

The ordering unit should specify the receiving unit, settlement unit, station settlement method, and delivery method.

If a busbar bridge is required, please provide specific details.
