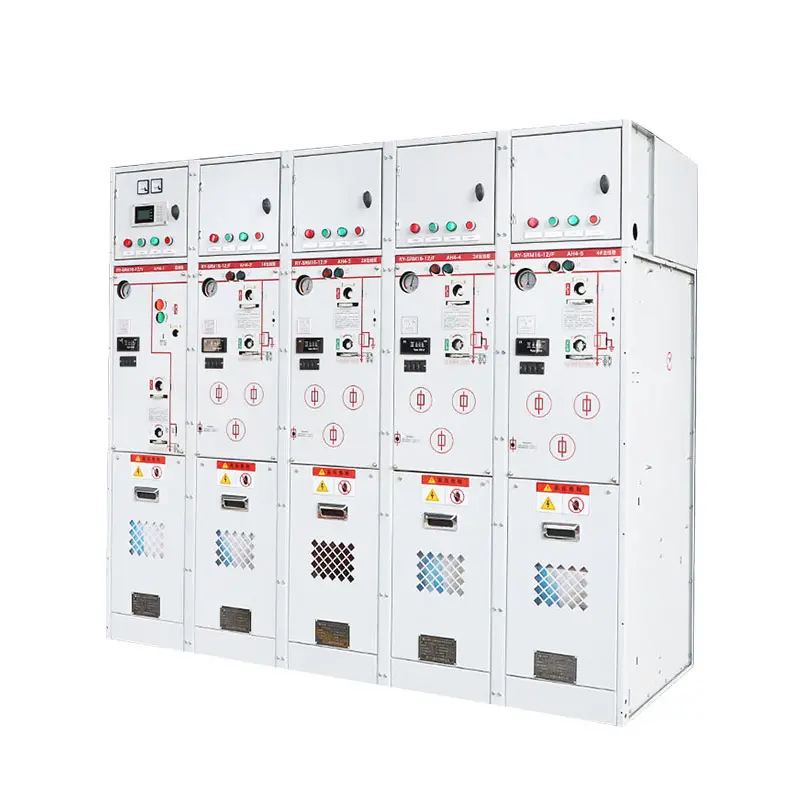

22kv Sf6 Gis Rmu Ring Main Unit Switchgear

As a well-known manufacturer of 22kV SF6 GIS RMU ring main unit switchgear in China, SYHF enjoys a superior geographical location and can provide high-quality and competitively priced products. We sincerely invite you to contact us for any questions or further information. We are committed to meeting your needs with precision and professional knowledge in the field of gas insulated ring main units, so your contact is very important.

22kv sf6 gis rmu ring main unit switchgear Features

Sealed or embedded with epoxy resin and silicone rubber for live parts, fully insulated and enclosed structure, safety protection level: iP67

All operating mechanisms are sealed inside the box and maintenance free. Featuring a phase separation design, independent phase insulation, and standardized modular design to avoid phase to phase faults, it facilitates unit expansion, modification, and replacement.

Can independently observe the working positions of each phase switch. Safe, intelligent, environmentally friendly, flexible assembly, good performance, suitable for special environments. Multiple mechanical interlocks achieve the "five prevention" function.

<630A bus> three-station load switch, fuse head end and fuse end ground switch are

mechanically linked

Three station double spring

operation mechanism with two independent load switch and ground switch operation shaft< Load switch and ground

switch position indication
