Sf6 Insulated Ring Main Unit Switchgear

SYHF high quality sf6 insulated ring main unit Switchgear, SF6 is a colorless, odorless, non flammable, and chemically stable gas. Compared to alternative solutions of air insulation, this feature makes the design of switchgear more compact. Gas molecules can absorb free electrons and prevent the formation of arcs. When the current is interrupted and an arc is formed, SF6 gas decomposes into different components and then recombines, effectively extinguishing the arc. This helps to quickly extinguish the arc and restore the dielectric strength.

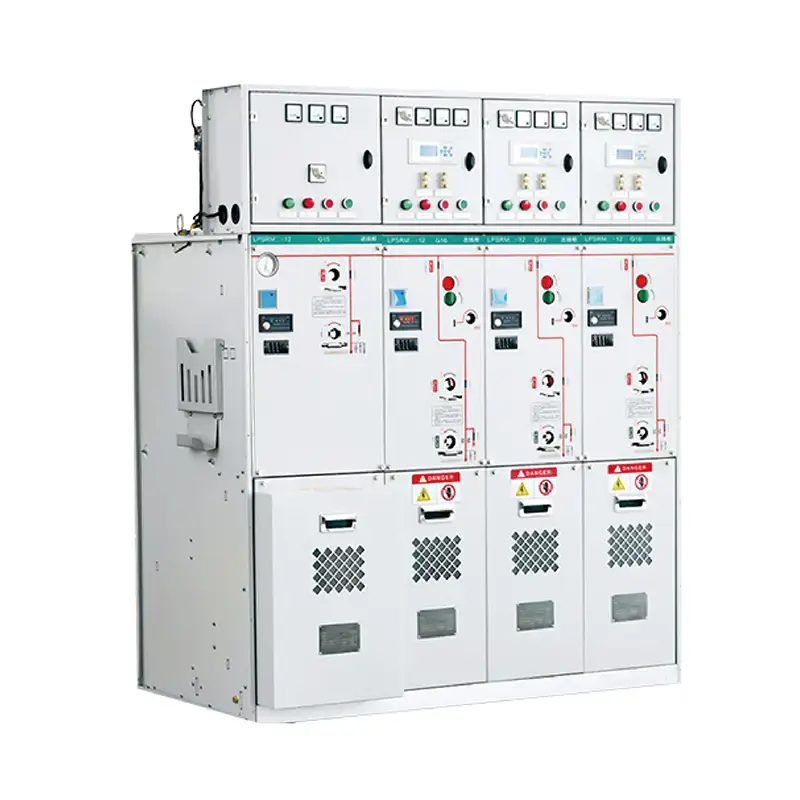

FLRN36-12/24 type sulfur hexafluoride load switch is set to load switch,grounding, isolated from about the integration of multi-function medium voltage switchgear, in a fully sealed.epoxy resin with strengthening structure inside the shell, with 0.045MPA of SF6 gas, with a small number of components to achieve the above three kinds of functions, thus ensuring product quality and reliability, excellent insulation box of switch function, can guarantee the safe operation of the equipment under normal conditions for20 years.

Advantages of SF6 insulated ring main unit Switchgear:

Independent main switch and grounding switch with safety interlock

During maintenance, dual protection can be achieved through a grounding switch with an isolation switch

Our SF6 insulated ring main unit Switchgear is equipped with gas rupture discs to prevent damage caused by gas explosions

Gas leakage rate less than 0.1% within 30 years

Air box protection level up to IP67

There are two ways of design: top extension and side extension, which are more flexible and easier to install;

Up to IP67 plug-in parts with flood resistant design, easy to assemble/disassemble, fully sealed.

Metal materials account for over 90% and are recyclable;

It has comprehensive five prevention system locking function and is equipped with microcomputer error prevention device, which can provide comprehensive protection;

The switch action position is equipped with intuitive display, reliable action, and high display sensitivity.

sf6 insulated ring main unit Switchgear Application

Widely used for 12/24kV cable network tapping, disconnection, and multi power point interconnection, suitable for the control and connection of incoming and outgoing lines in urban underground cable ring networks and radial power grids, as well as for the control and connection of incoming and outgoing lines in mixed networks of underground cables and overhead lines for ring network power supply and radial power supply.
